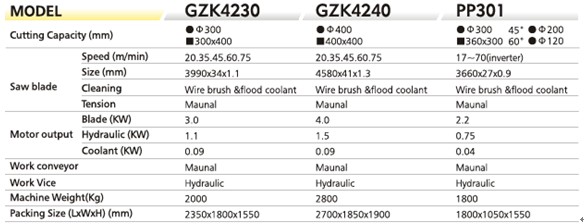

| Models |
Cutting range
(mm) |
Saw blade speed
(m/min) |
Saw band size
(mm) |
Main motor power
(kw) |
Dimensions
(mm) |
| GZK4230 |
Φ300
□300x400 |
20/35/45/60/75 |
4115*34*1.1 |
3.0 |
2350*1800*1550 |
GZK4230
Automatic Doubl- column
Horizontal Metal Band
Sawing Machine
Main features of the machine
·Man- machine interface instead of the traditional control panel.
Setup by digital way and with indicator.
·Anytime to check the mode, operation instruction and working
parameter of machine.
·PLC programmable control system to set up all procedures of the
automatic program.
·The feed travel is under control of raster measure.
·The length error less than 0.2mm.
Product name:GZK4230
Publish time:2010-12-8 0:00:00
|
